Dust Collector
Keep your workspace clean and your machine running smoothly
DSP Control System
Achieve complex designs with smooth & reliable performance
5.5KW Power
Delivering powerful and stable cutting performance
Vacuum Worktable
Securely holds materials flat on the CNC worktable
Selection Of Bed Size : 8feet-12.5Feet
Select the CNC Router Bed That Fits Your Needs
Energy Saving
Designed with efficient motors and intelligent control systems

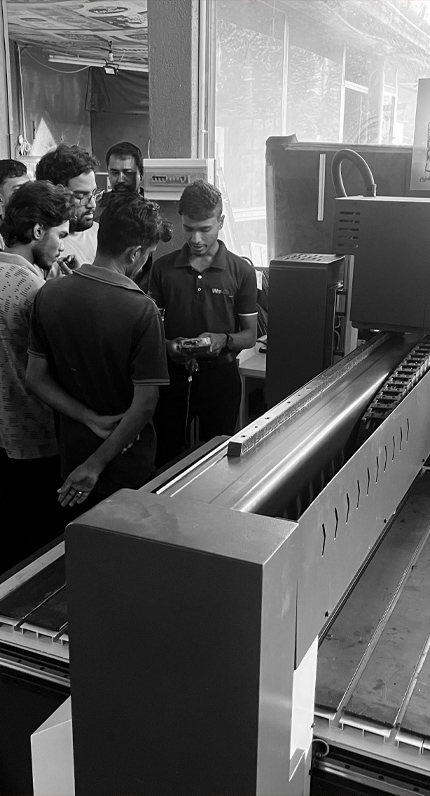

We Help You Master CNC Router Operating
Investing on a CNC router is a big step, but knowing how to use it confidently is where the real value begins. That’s why we offer hands-on training designed to guide you through every stage of the process, from design to final cut.
Our training covers everything from creating your design to setting the cutting path and running the machine safely. You’ll learn how to choose the right tools, adjust settings, and get clean, accurate cuts every time.
We also show you how to take care of your machine and avoid common mistakes, so you get the best performance for years to come.

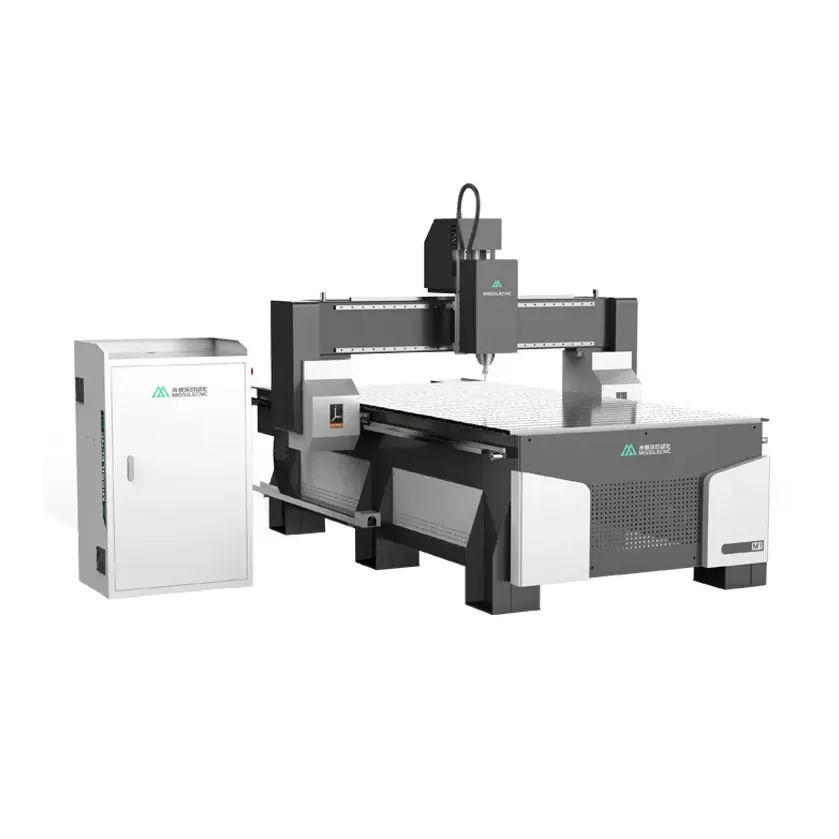

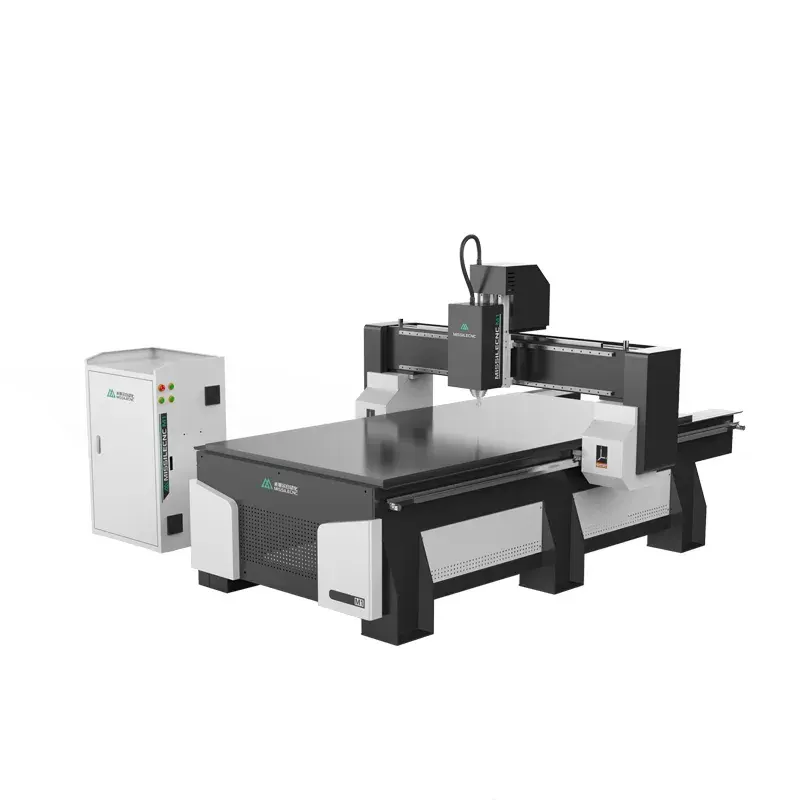

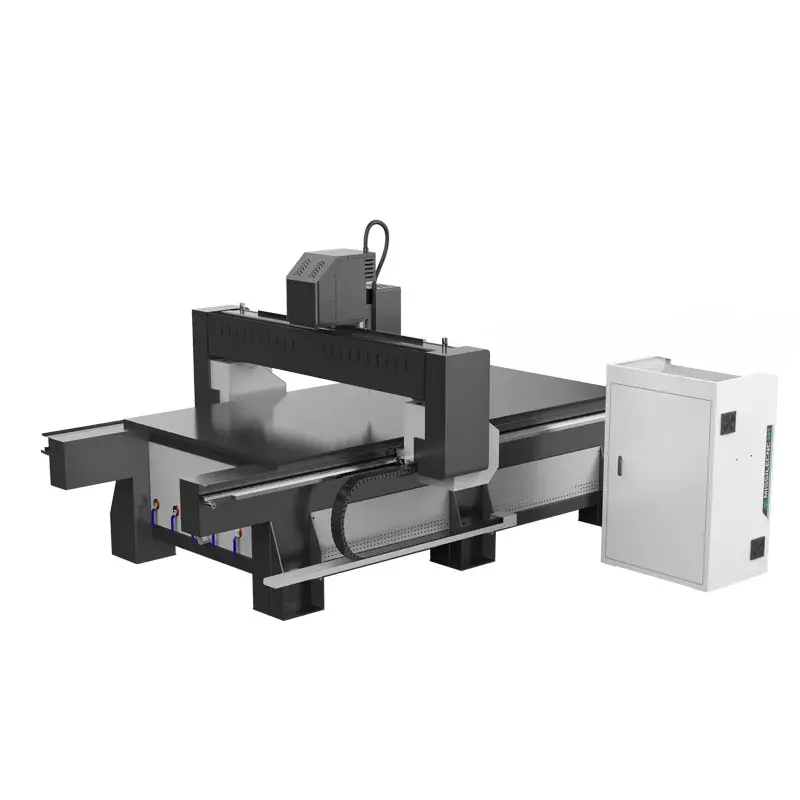

Features & Specifications
| X,Y,Z Working Area (Standard 1325) | 1300x2500x200mm |
| Table Size | 1340X3340mm |
| Working Table | Vacuum absorption bed
(5.5KW vacuum pump equipped) |
| Spindle | 5.5 kW water-cooled spindle, capable of speeds up to 24,000 RPM |
| Dust Collector | 3.0kw |
| Drive System | Stepper motors with rack and pinion on X/Y axes and ball screw on Z-axis |
| Max.Rapid Travel Speed | 0-32000mm/min |
| Control System | DSP controller |
| Spindle Speed | 0-24000RPM |
| Motor & Drive | 450B motor & Leadshine 860 driver & Best inverter |

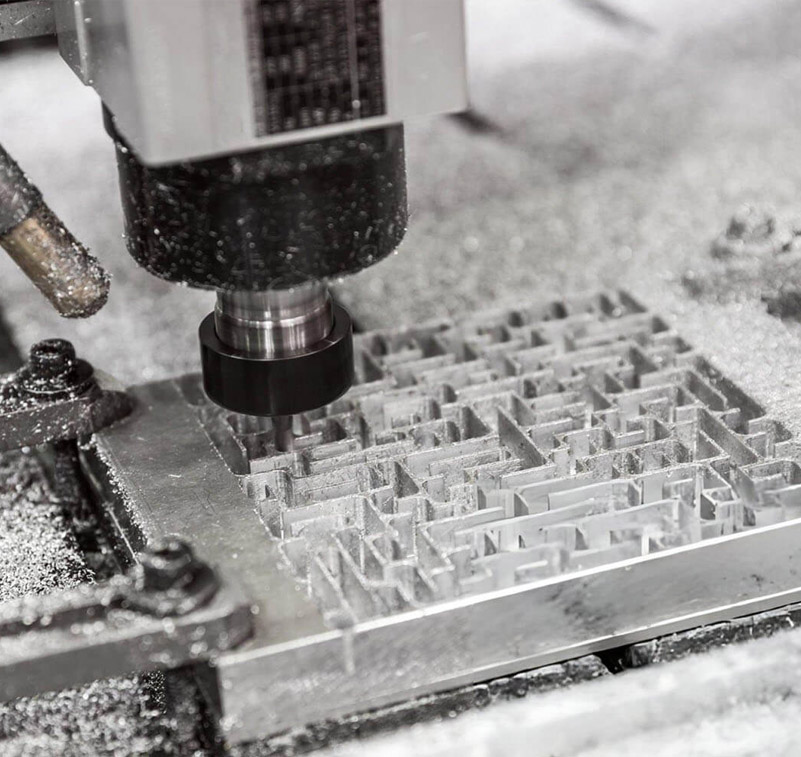

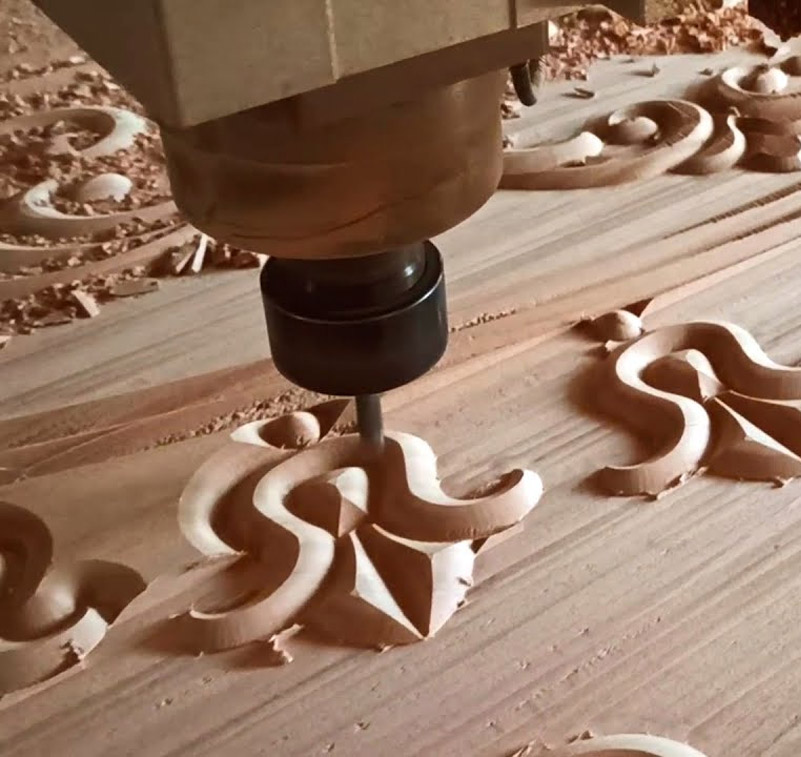

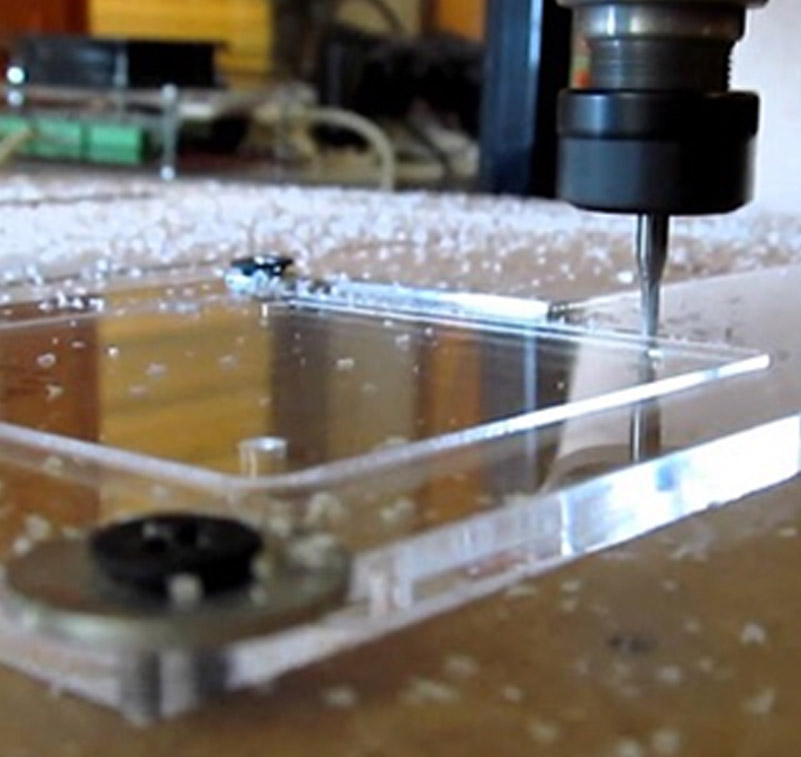

CNC routers are used for precise cutting, carving, and shaping of wood, plastics, foam, and soft metals in industries like furniture making, signage, prototyping, and interior design.
